01

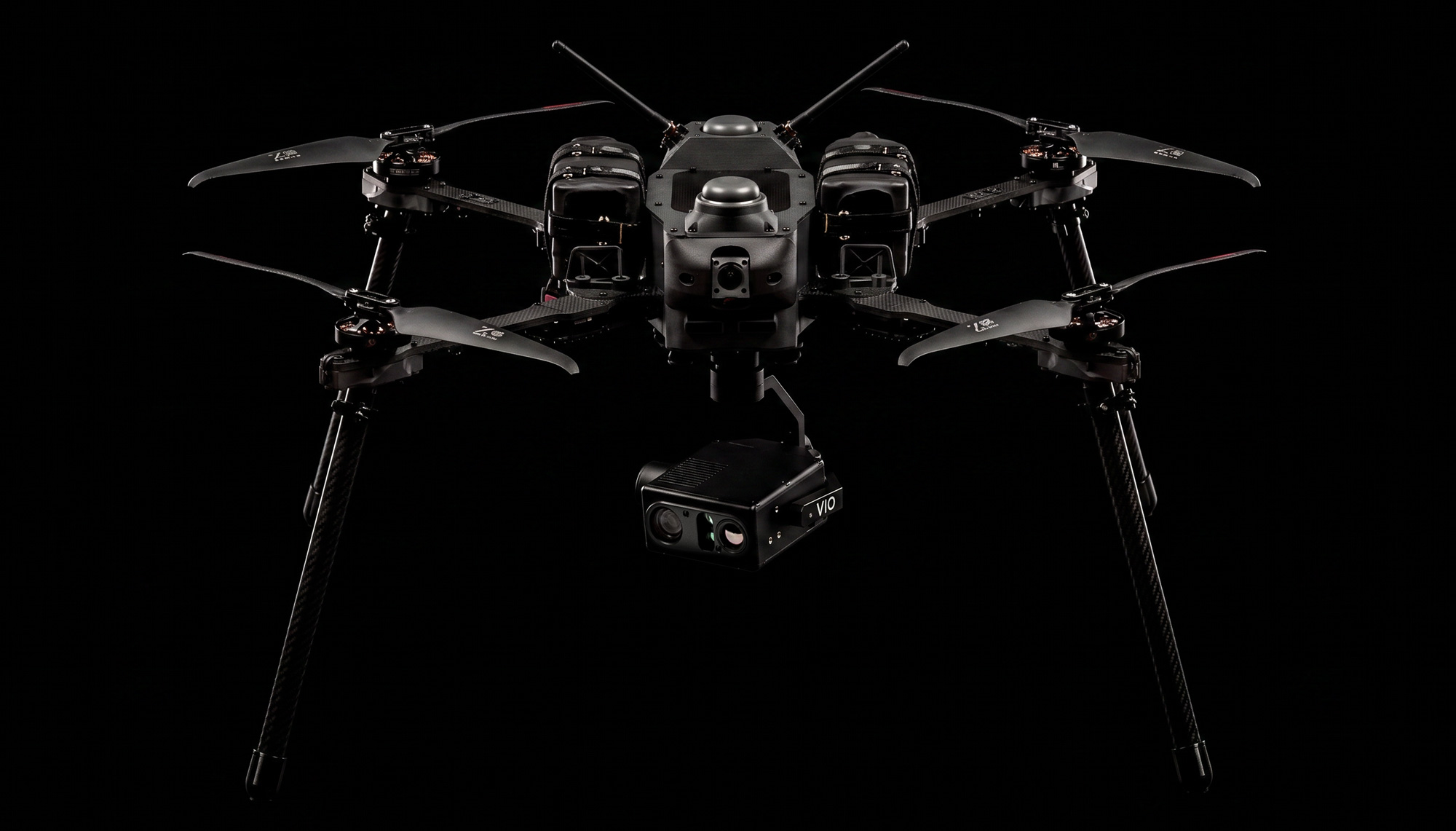

AY-280 Hammer is a mission-ready rugged tactical drone platform for real-time ISR, precision delivery and short range reconnaissance tasks.
Developed in collaboration with the Italian Army Special Forces.
Featuring integrated AI, robust endurance, and full GNSS-denied capability, AY>280 Hammer adapts to the most severe operational scenarios.
02
Compact, multipurpose aerial system engineered for reliability, scale production, and tactical adaptability.
→ Designed to perform under stress and deliver consistent results across mission profiles, HAMMER combines proven hardware with software-defined autonomyto support ISR, logistics, swarm coordination, and tactical support applications.
Built for repeatability and low-friction production scaling, its design-to-manufacture approach that minimizes complexity, optimizes part commonality, and prioritizes reliability under field conditions.
⸻ Operational Advantage
1
Tactical Delivery
→ Up to 4.0 kg payload delivery (2.5 kg standard mission config).
→ Modular cargo deployment: hover-drop, auto-release, remote sync.
→ Medical, signal, payload or jammer pods compatible.
→ Dual-band encrypted video/data relay.
→ Dual-band encrypted video/data relay.
→ Long-range backup via 868 MHz / LoRa / UWB.
→ Optionally integrates 4G/5G or SATCOM modules.
ISR & Target Identification
→ EO/IR tilt camera with FHD live-stream.
→ Auto waypoint navigation and real-time recon.
→ Operates in EW-contested and GNSS-denied scenarios.
Datalink (opt. on request)
→ Dual-band encrypted video/data relay
→ Long-range backup via 868 MHz / LoRa / UWB.
→ Optionally integrates 4G/5G or SATCOM modules.
2
Integrated Avionics
→ Single high precision multi-constellation RT GNSS with multiband helical antenna.
Payload
→ Vertical LiDAR.
→ Analog, digital video transmissions.
→ Analog, digital camera (DJI O3/O4, Walksnail Avatar GT or OpenIPC OS compatible), or thermal (Caddx IRC-640CA, Caddx IRC-384CA or AKK).
→ Nvidia Jetson Orin NX as AI computer.
→ Two 40kg/cm release servos with adapters for different types of payloads.
Navigation modes
→ Up to 20 (Waypoint, Loiter, Position Hold, GoTo, GoHome, Return to Pilot, etc.).
→ Automatic emergency procedures.
→ Programmable SWARMING flight missions.
Datalink (opt. on request)
→ Main control and telemetry frequency bands: 5 GHz / 2.4 GHz / 900 MHz / 868 MHz / 433 MHz, and others.
→ Main drone control type: ELRS or TBS.
→ MANET radio, 4G/5G, WiFi/BLE, LoRa, satellite communication module.
→ Data encryption AES 128/256 bits.
Safety Equipment
→ Direct Remote ID transponder compliant with EU (ASD-STAN EN 4709-002) & US (ASTM F3586-22) standards and regulations.
→ Flight Termination System (FTS) compliant to the MoC2511 for operation in the specific category when Enhanced containment applicable.
→ Programmable RGB LED light for enhanced visibility.
→ Parachute system compliant to the MoC2512 for operation in the specific category.
3
Objects and Obstacles avoidance
→ Object Detection/Recognition.
→ Obstacle Detection.
→ Horizontal Obstacle Avoidance.
→ Vertical Obstacle Avoidance.
Navigation
→ Denied GNSS/GPS Navigation and Complex Environment Navigation.
→ Map matching/Terrain Following.
→ Dynamic Path Planning.
→ Motion Synchronization.
→ Safe Landing Spot Detection and Precision Landing.
→ Horizon Pos. Detection.
